Palm Jumeirah

Client

Private

Location

Dubai, UAE

Project Type

Residential

Status

Completed

What is Palm Jumeirah?

Palm Jumeirah is Dubai’s most captivating offshore destination, billed as the Eight Wonder of the world. This amazing man-made island offers a luxurious beachfront lifestyle with magnificent resorts and some of the most exclusive residential properties right by the Arabian Sea.

Scope

3D Laser Scanning in Dubai, Palm Jumeirah: Our client, a leading Dubai Property Developer, plans a complete remodel of this property.

Palm Jumeriah-PC - 3D View - 3D View 3
Palm Jumeriah - 3D View - 3D View 3

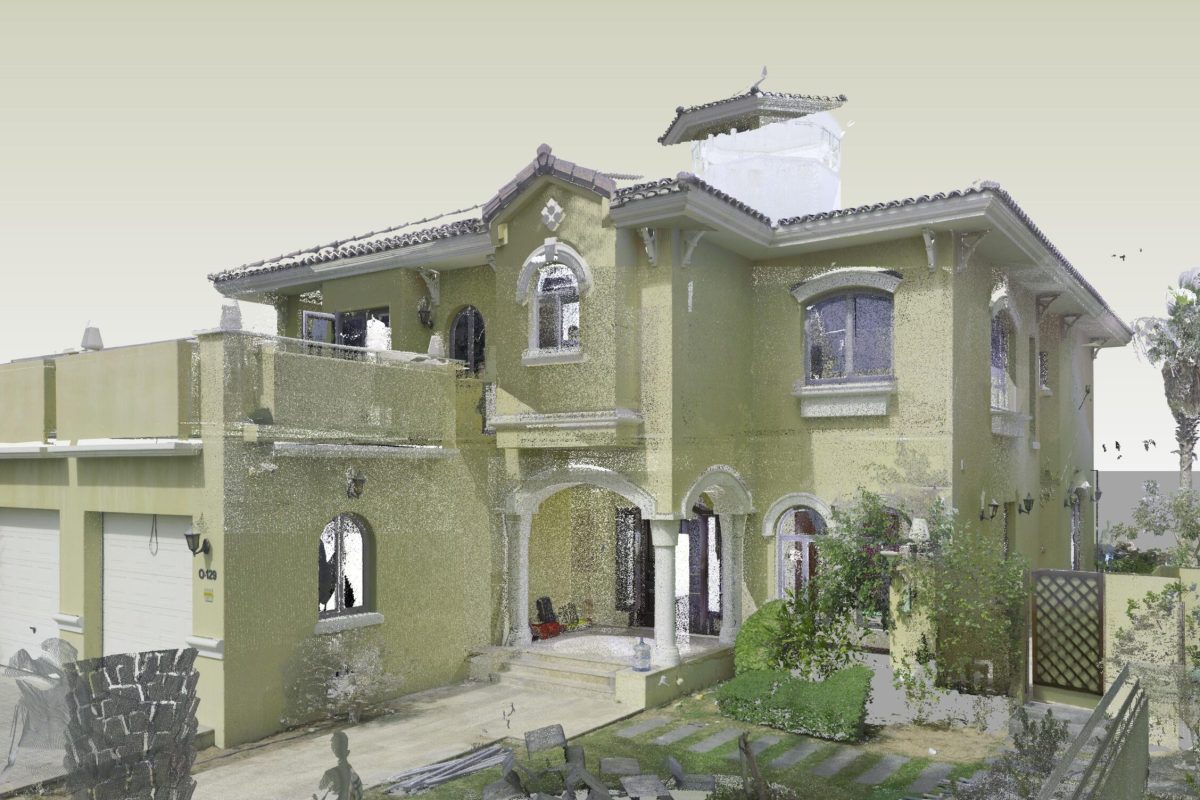

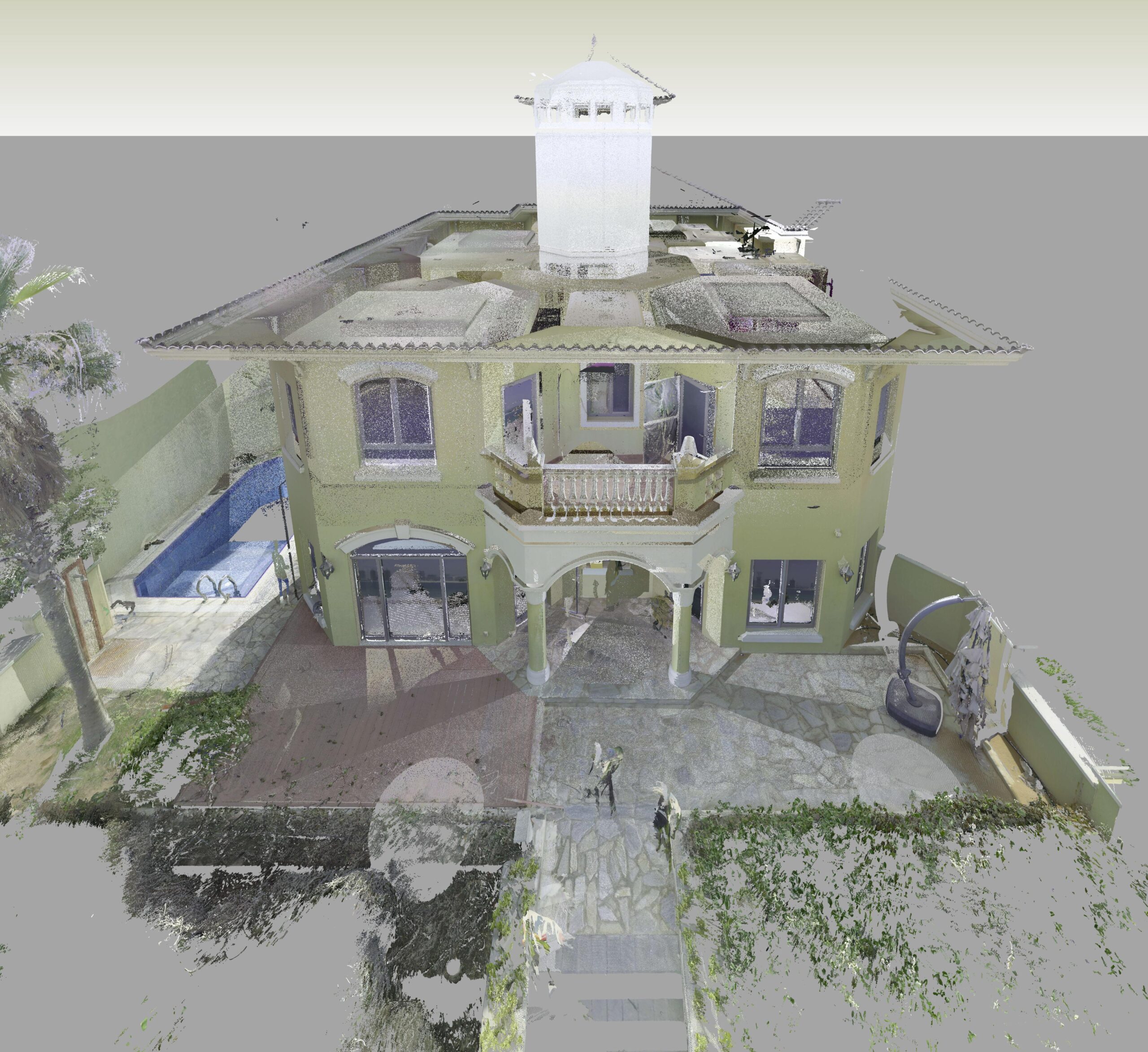

Point Cloud Scan 1

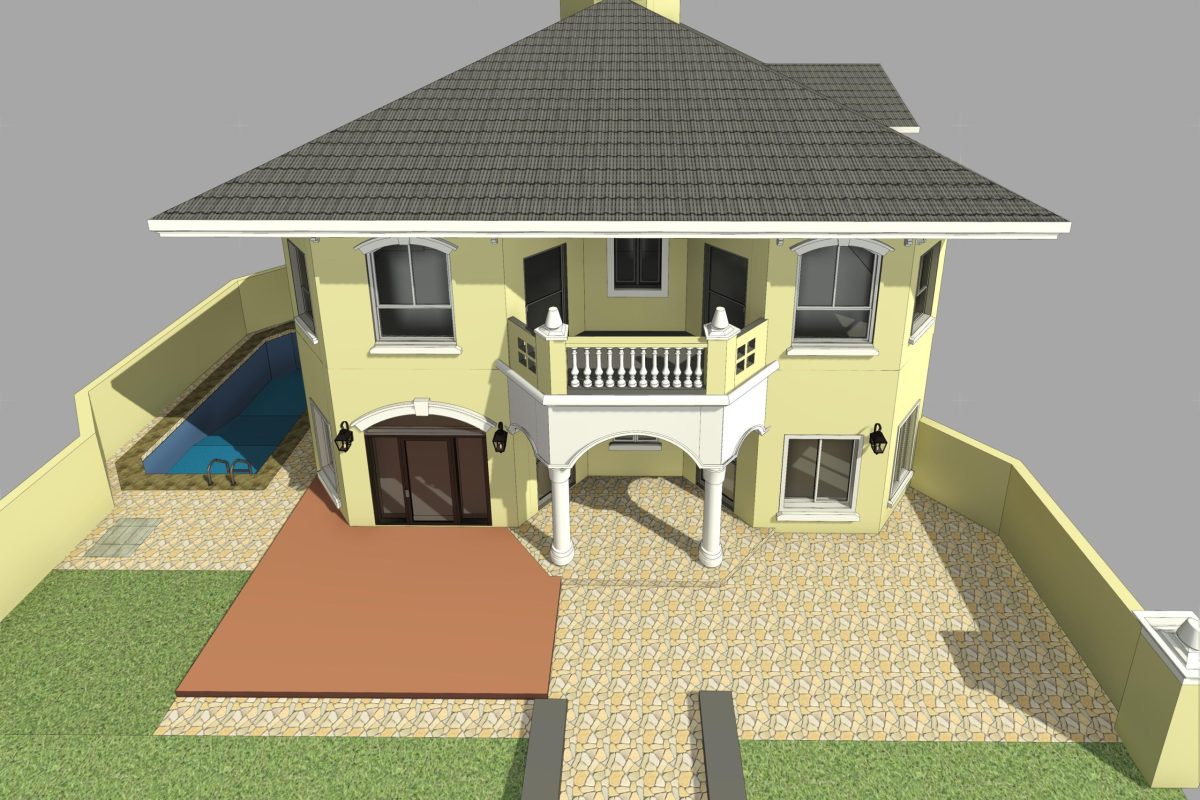

Revit Model 1

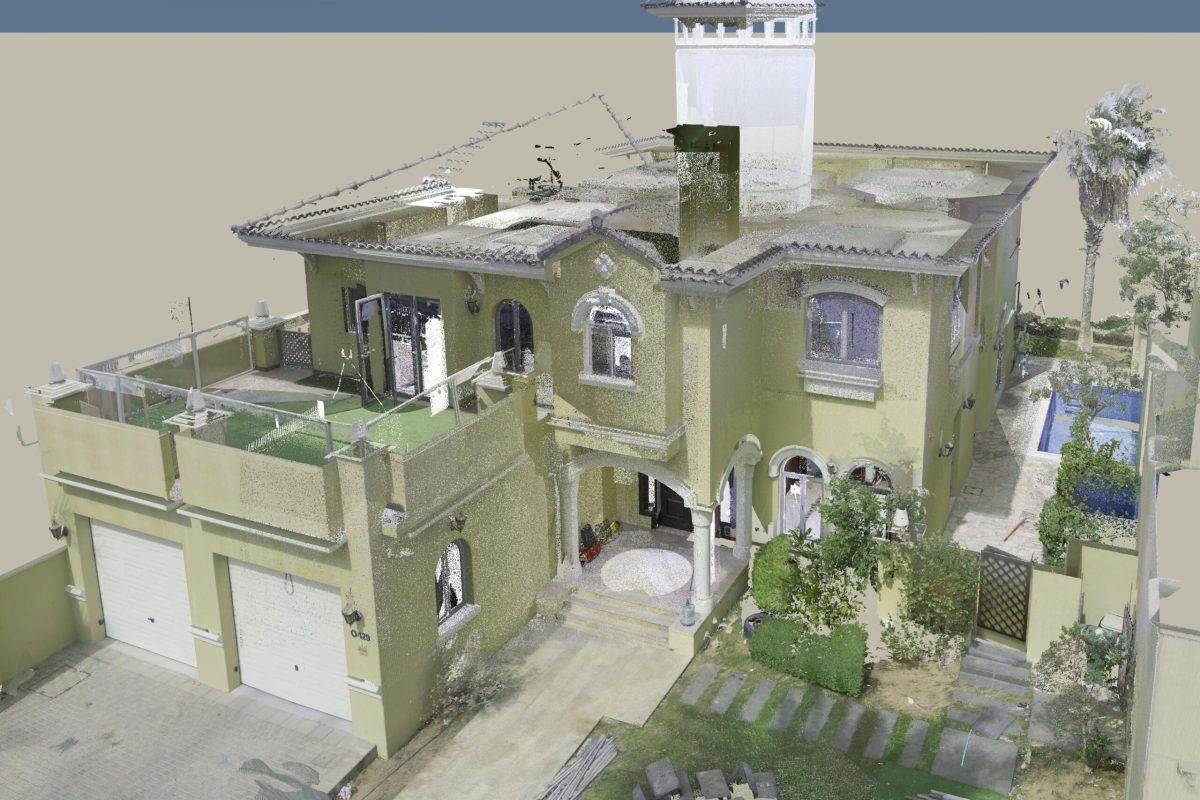

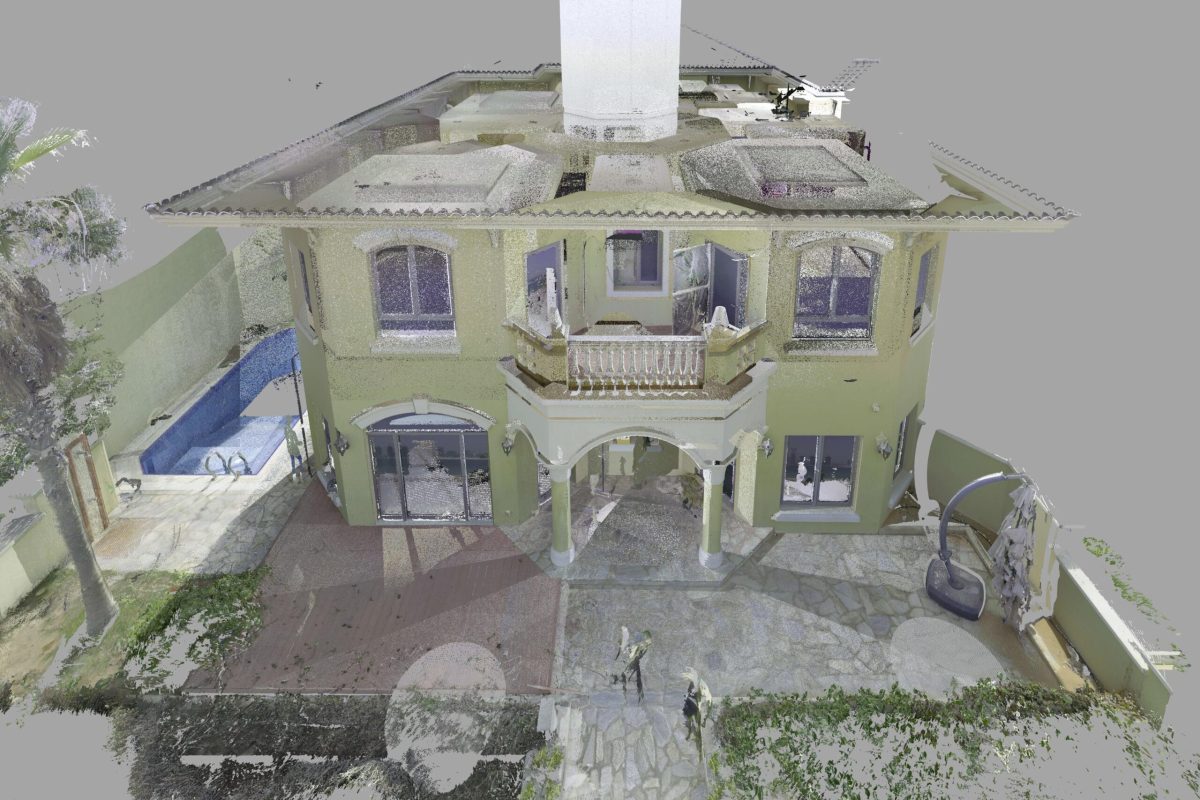

Point Cloud Scan 2

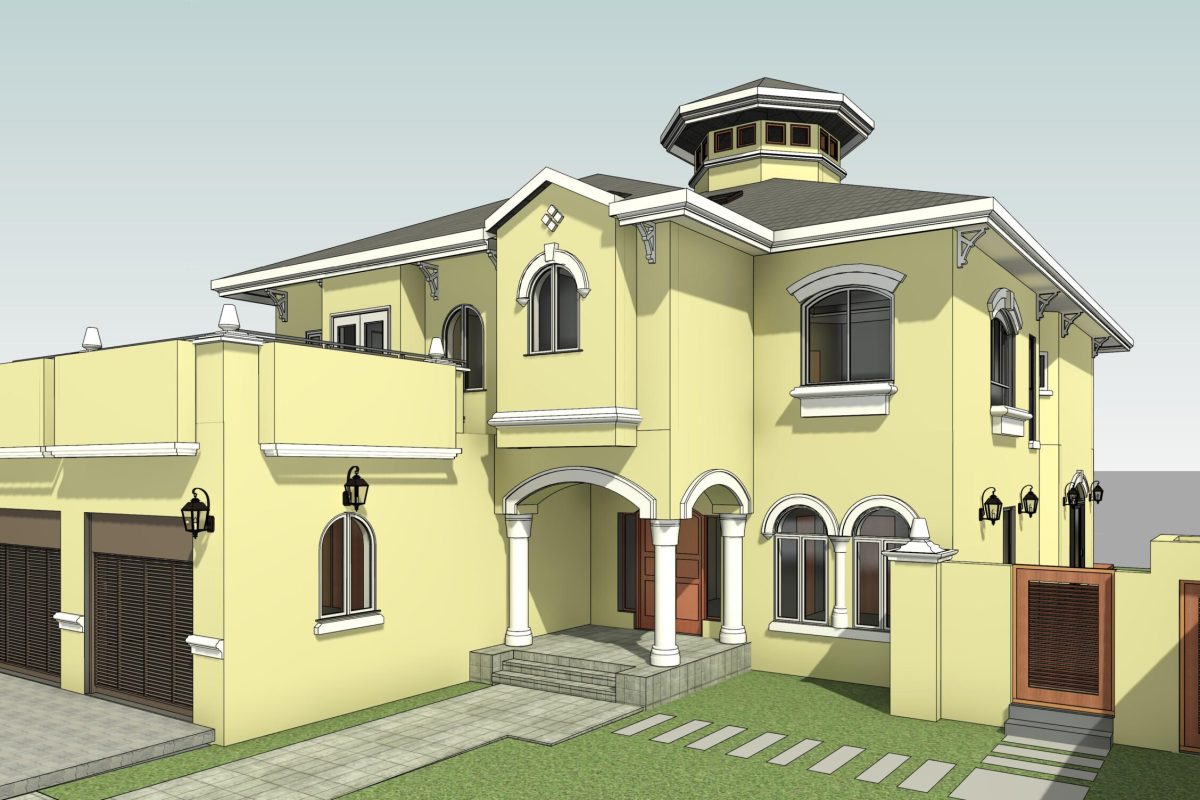

Revit Model 2

Results

  • We scanned the site with a Leica scanner.
  • Entire interior and exterior surveyed.
  • Registered point cloud file.
  • LGS files are produced, viewable in True View.
  • Prepared 3D Revit Model of LOD 350.
  • CAD model served as the basis from which to design all the new changes and additions.

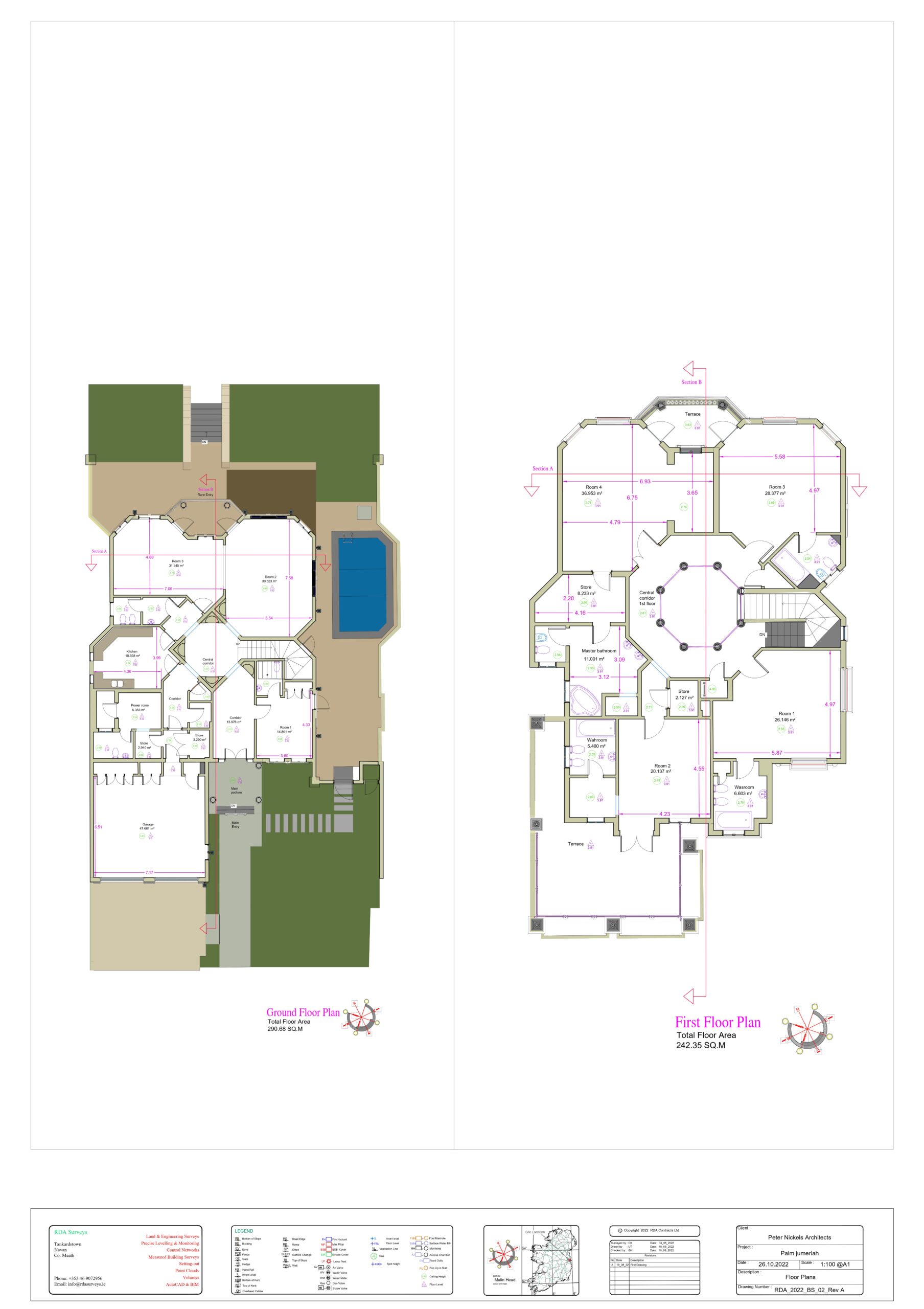

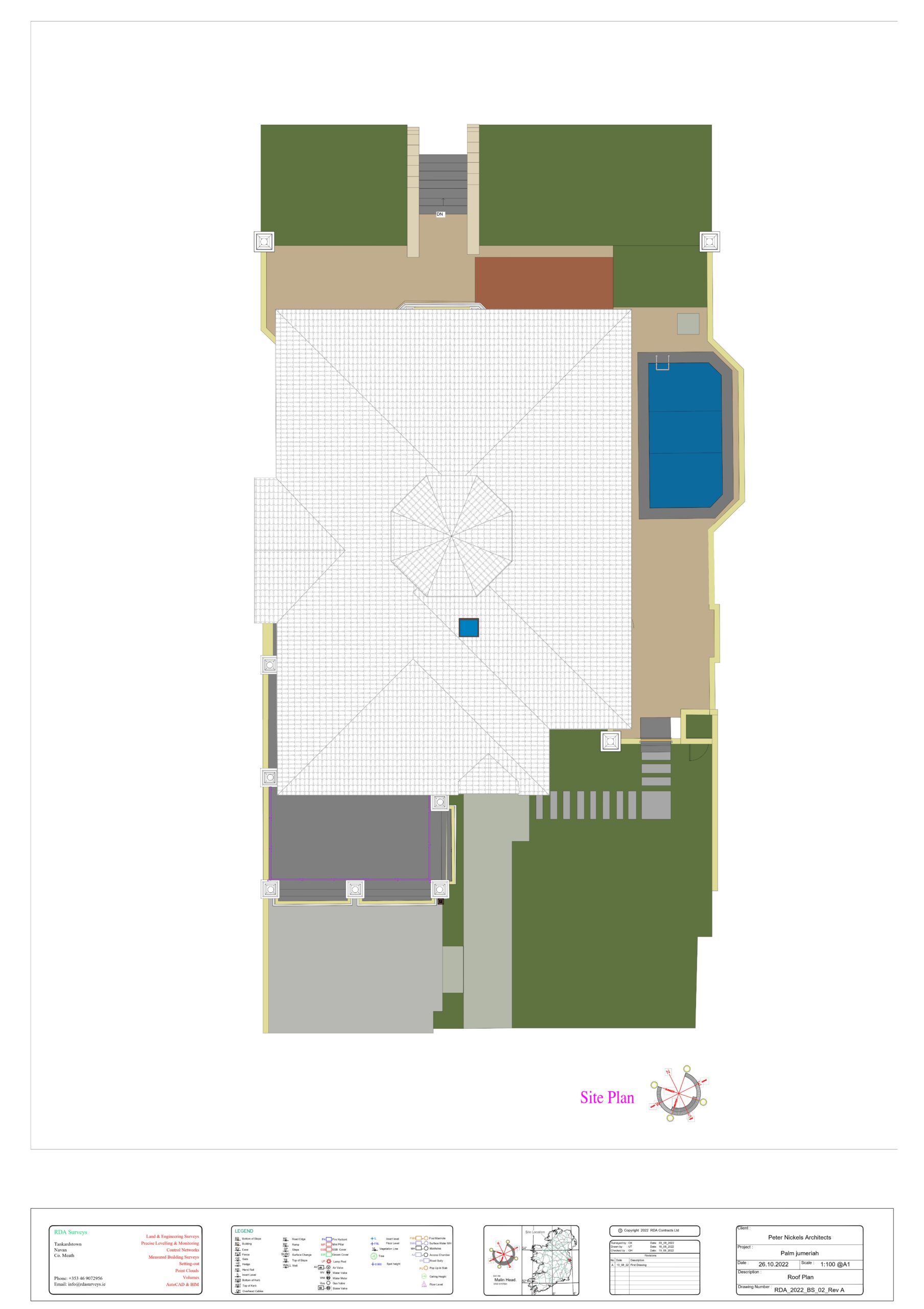

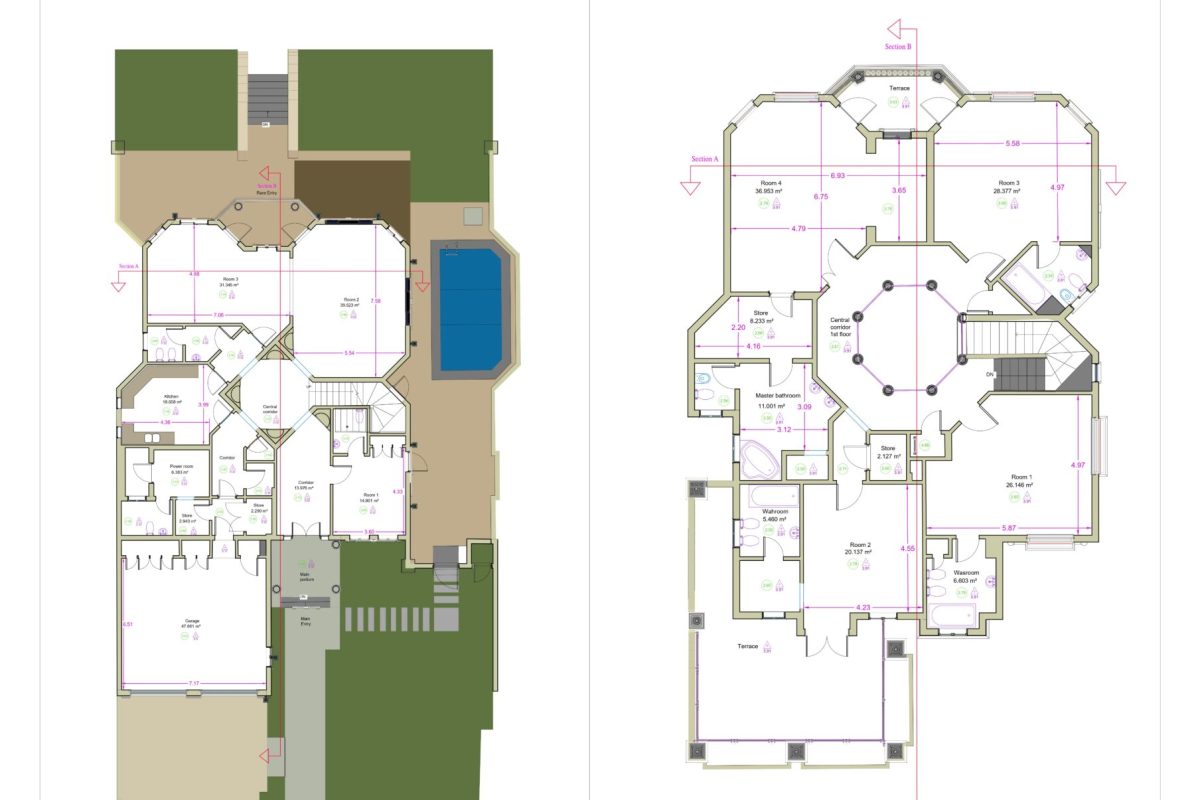

  • CAD drawings of floor plans, roof plans.
Elevations 1
Elevations 2
  • Concrete steps at exterior doorways, walls, bathtubs, shower units, toilets, and sinks.
  • Floor levels, ceiling heights, internal floor area of each room, show area of full building, dimensions of each room, and room numbers.
  • Roof plans to also show locations of all rainwater gutter drains, chimney walls.
  • External elevations of the window and door frames are to visually match real time as closely as possible.

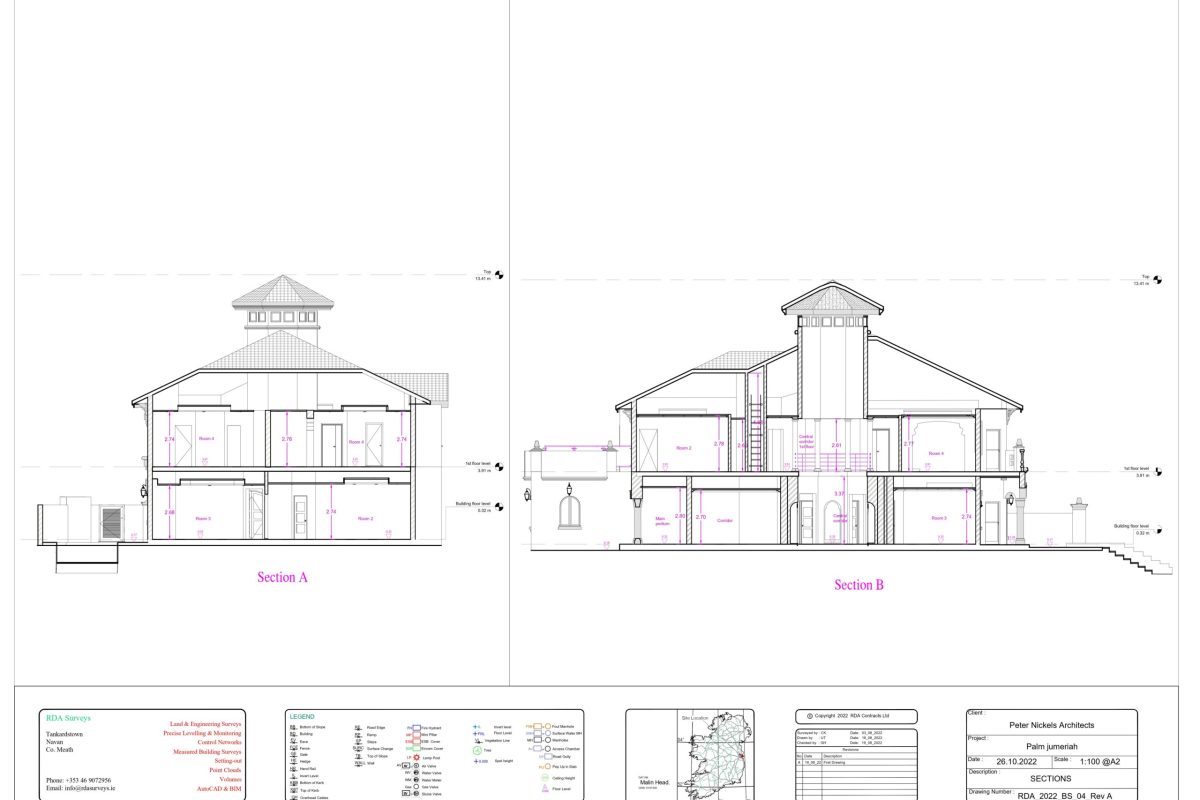

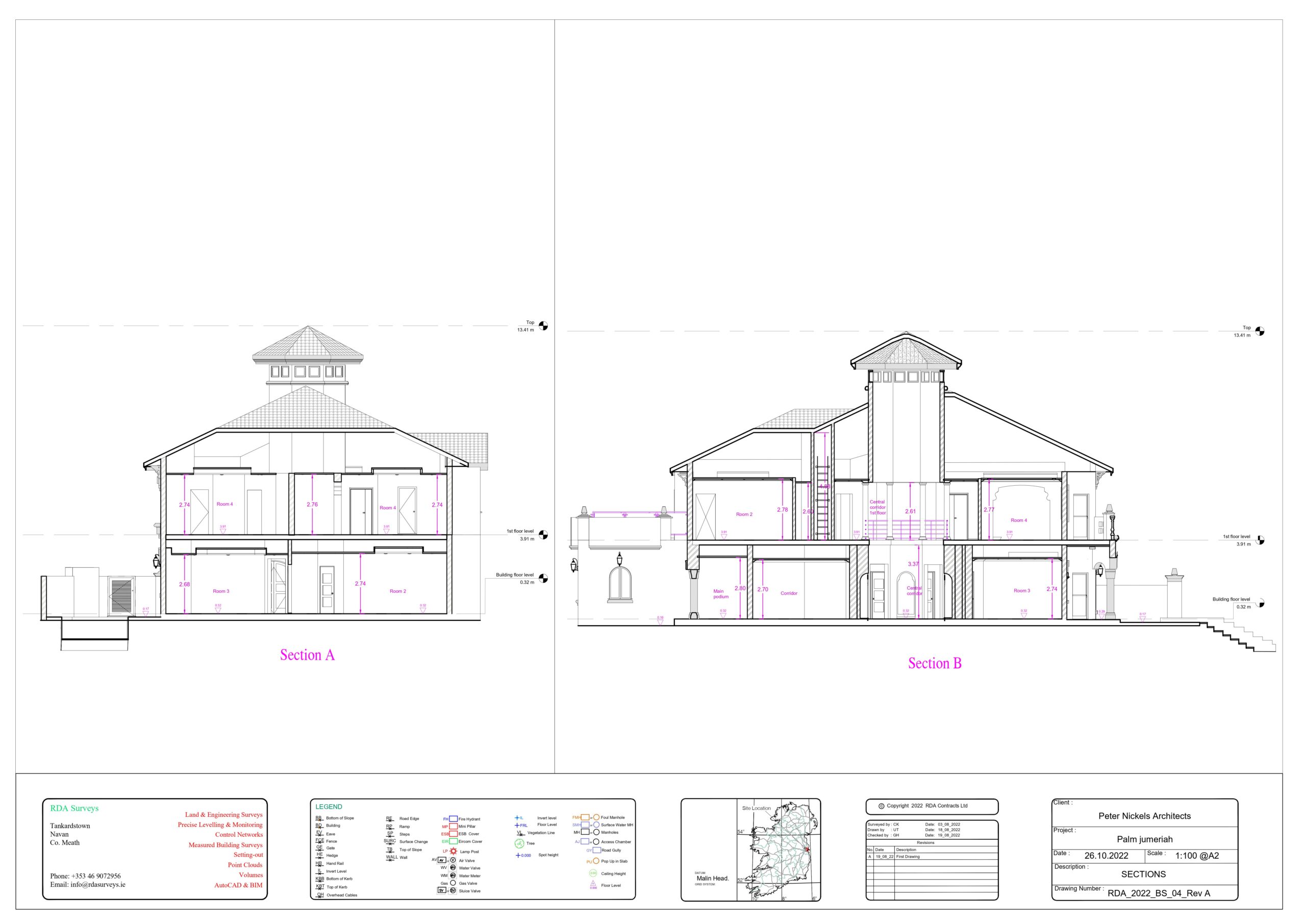

  • 2no sections of the building to show above ceiling profile as best possible.
Elevations 4
Elevations 3
