St Marys Lodge

Client

Private

Location

Dublin, Ireland

Project Type

Commercial

Status

Completed

Scope

We Carried out a 3D Laser Scan to Deliver 3D BIM Model with the Required Level of detail.

Results

  • We scanned the site with Leica scanner.
  • Entire interior and exterior surveyed.
  • Detailed elevations, floor plans, sectional elevations were produced in AutoCad format.

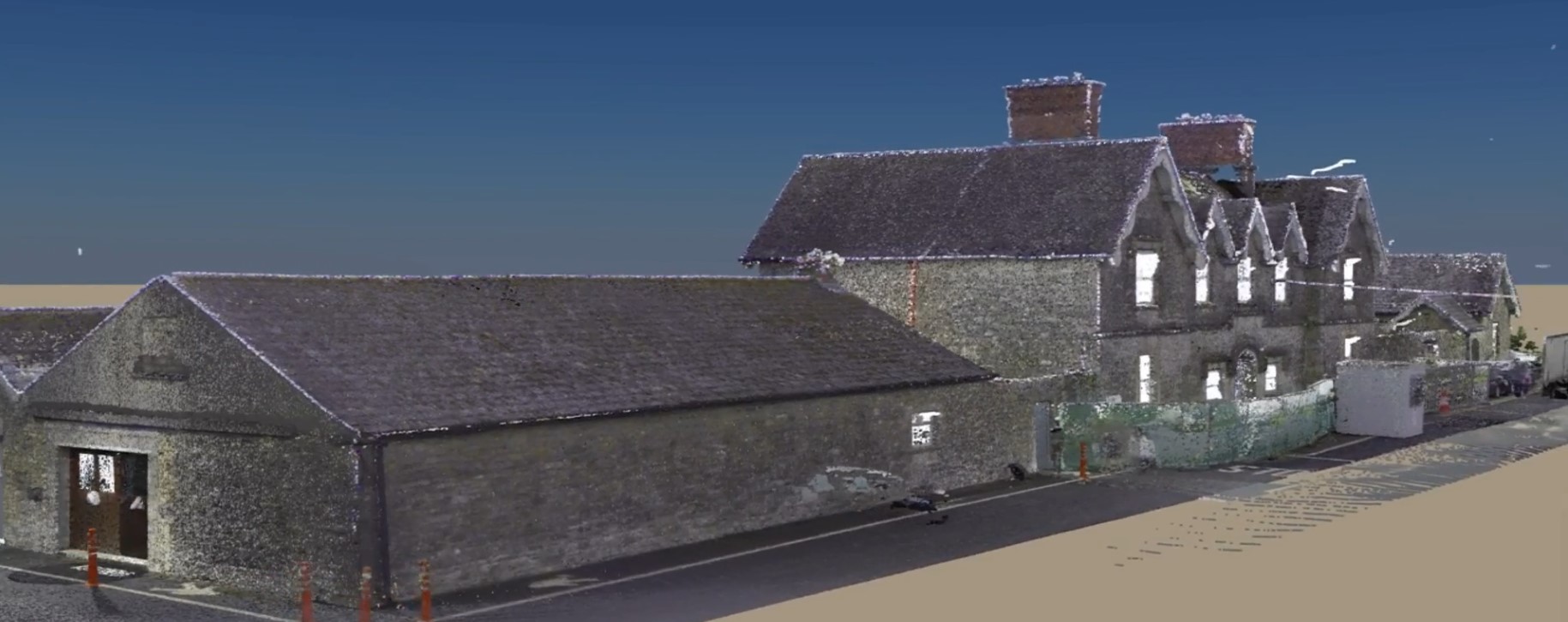

St marys Lodge Scan 1

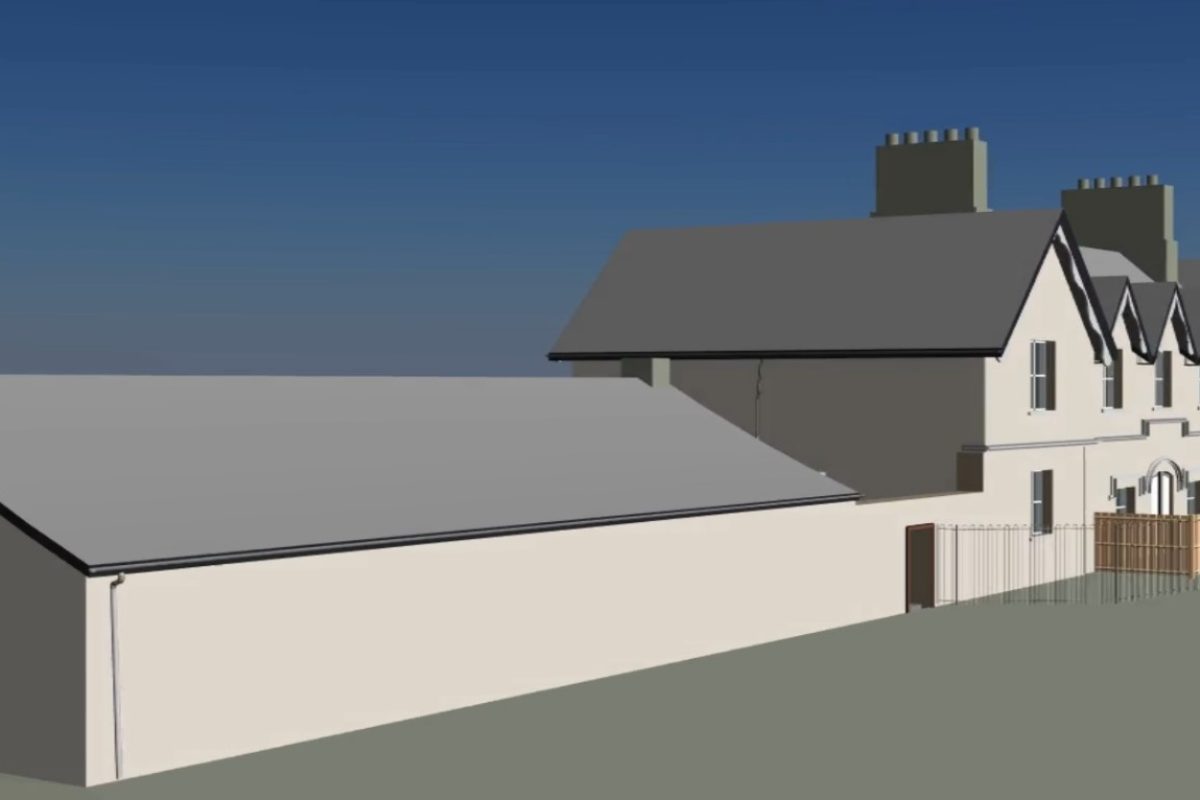

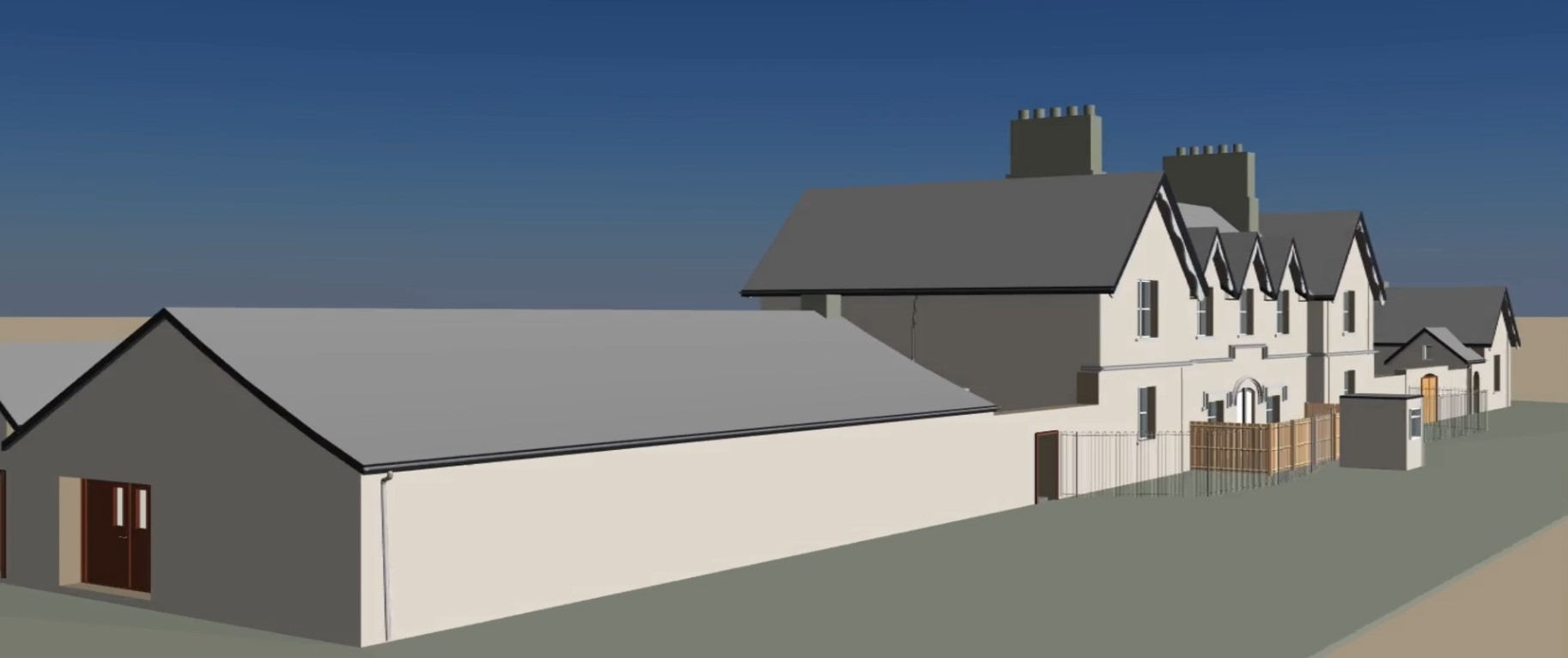

St marys Lodge model 1

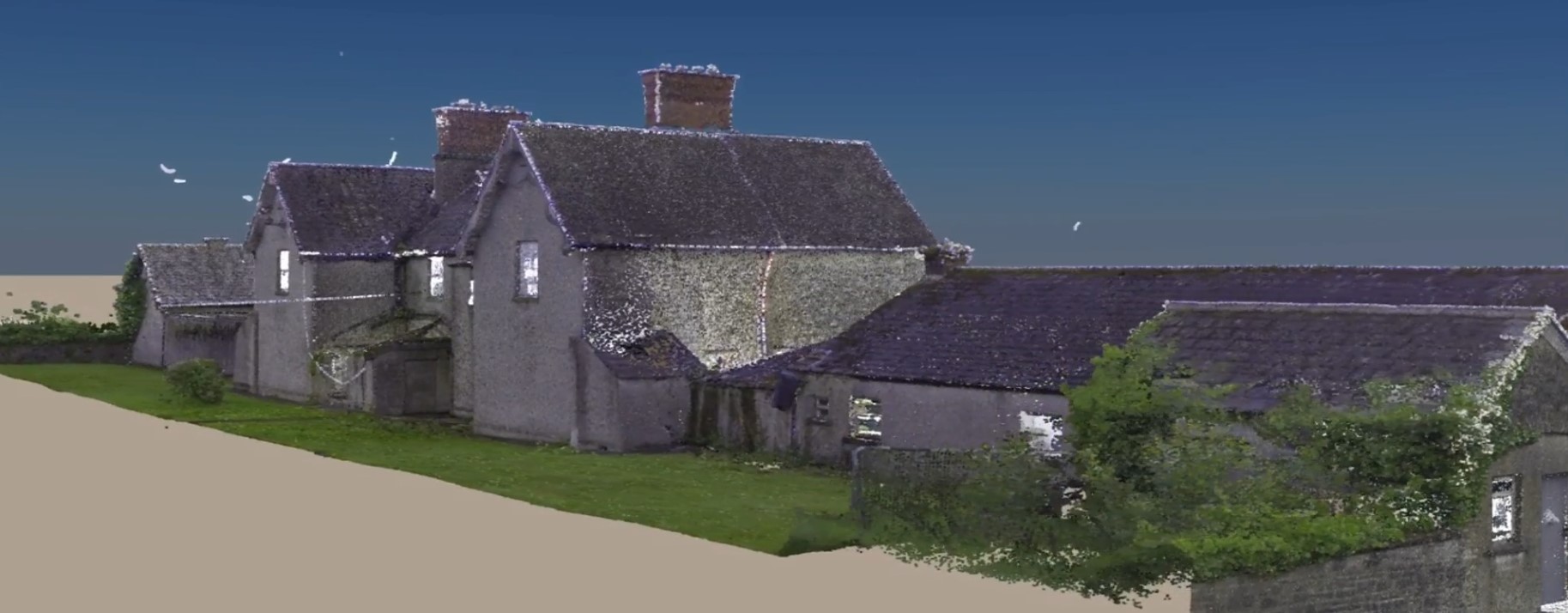

St marys Lodge Scan 2

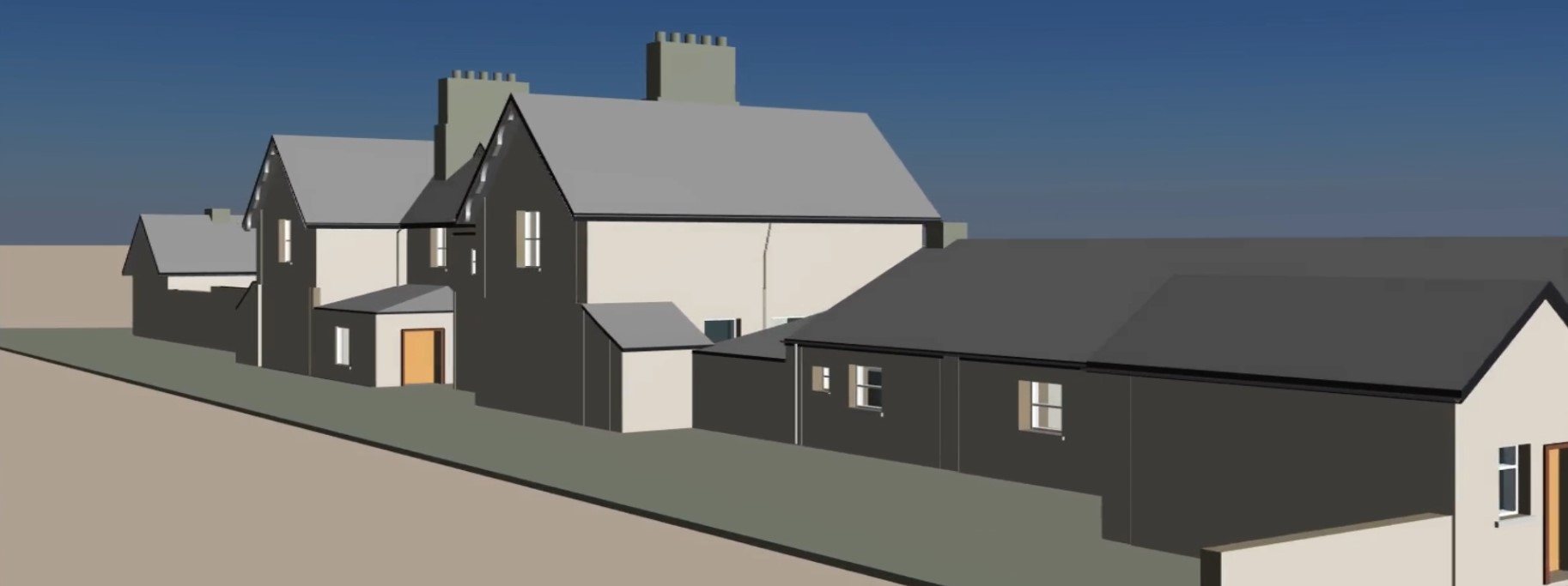

St marys Lodge Model 2
  • Consulted with the Architect to specify the special items of interest like walls textures, doors etc.
  • Deliverables were the Revit Model, 360 Imagery, Point Cloud and AutoCAD files.

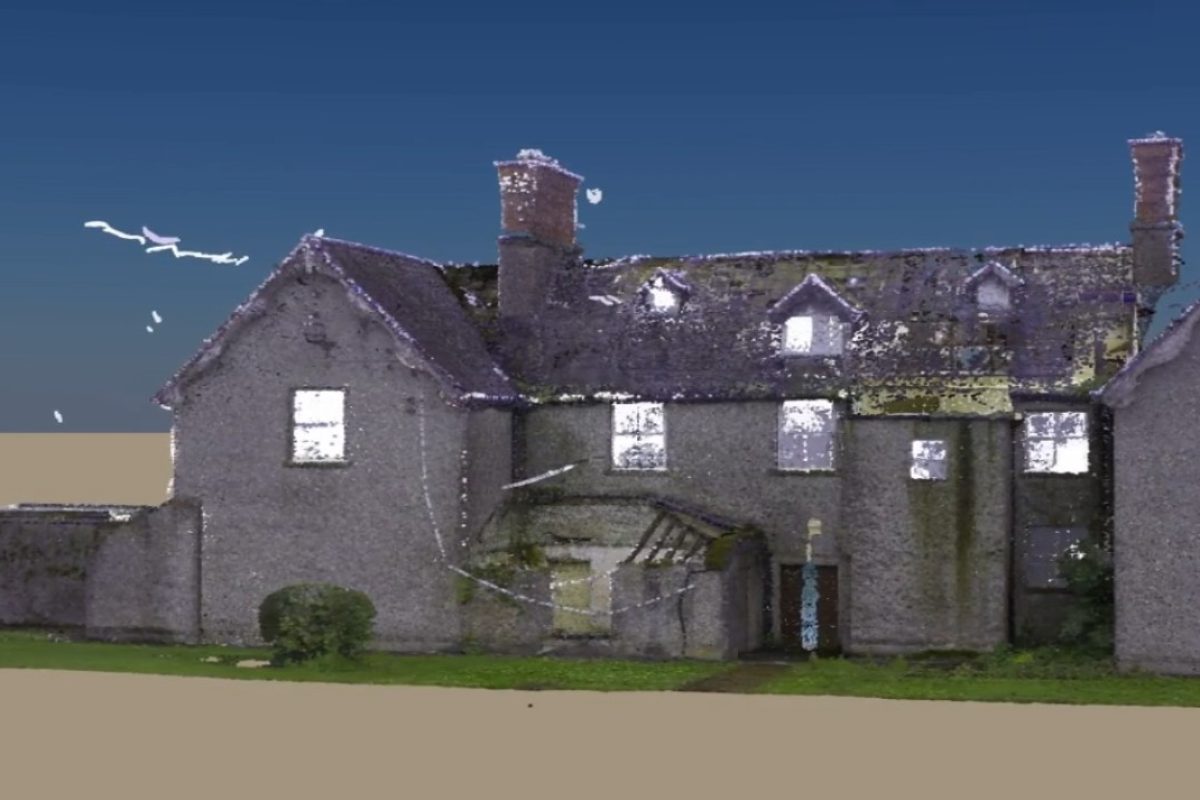

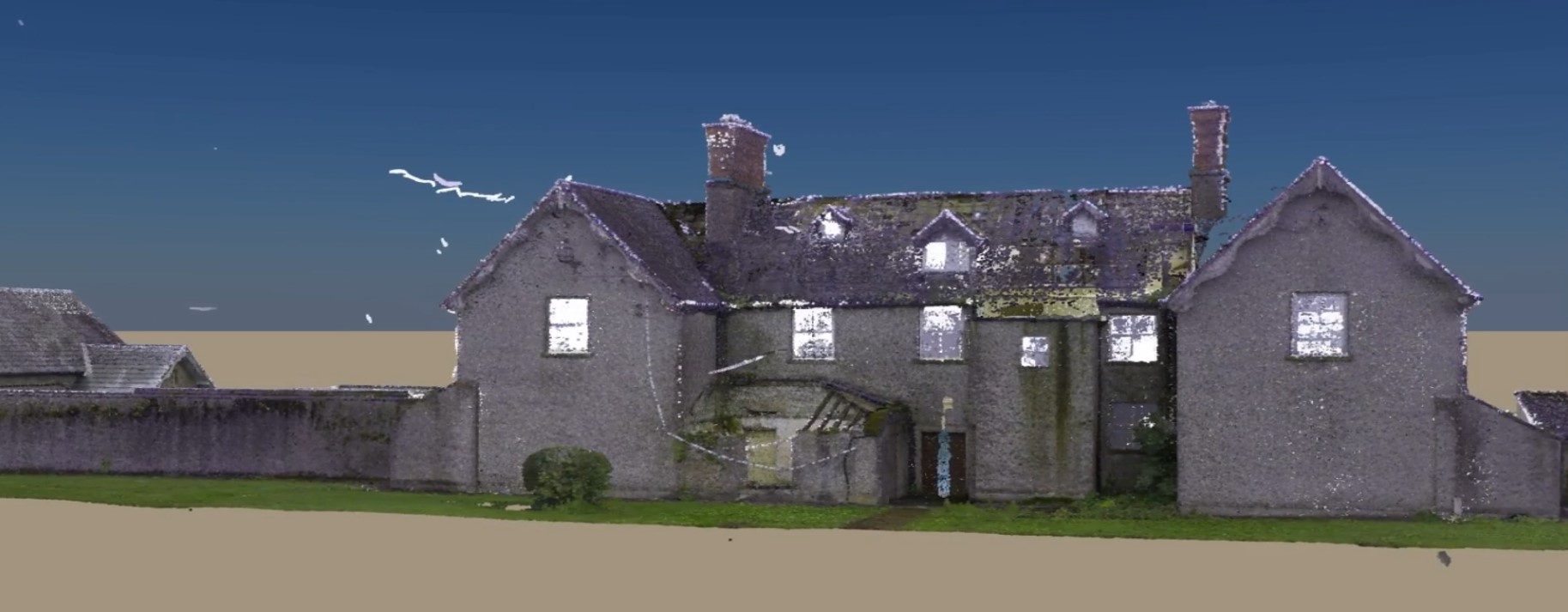

St marys Lodge Scan 3

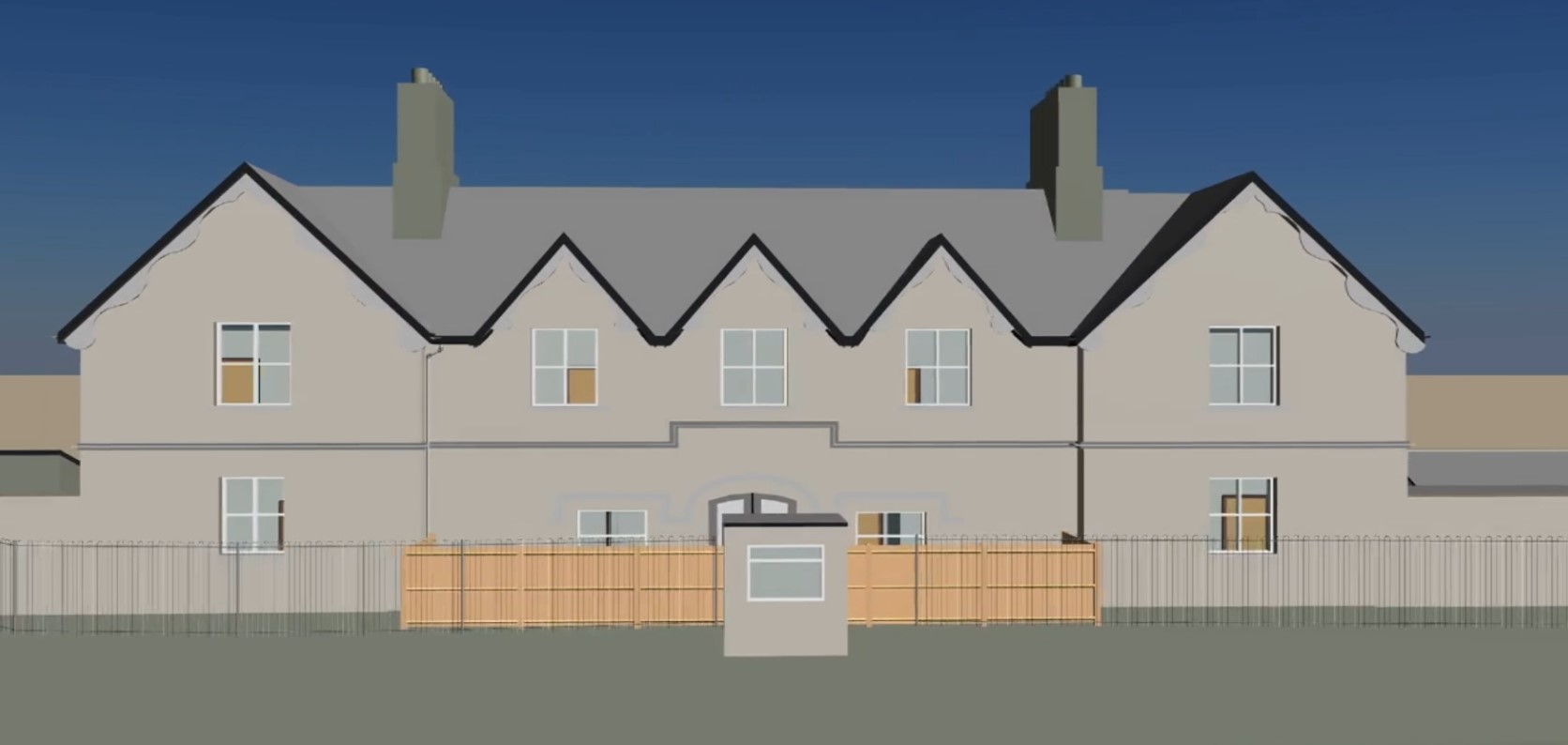

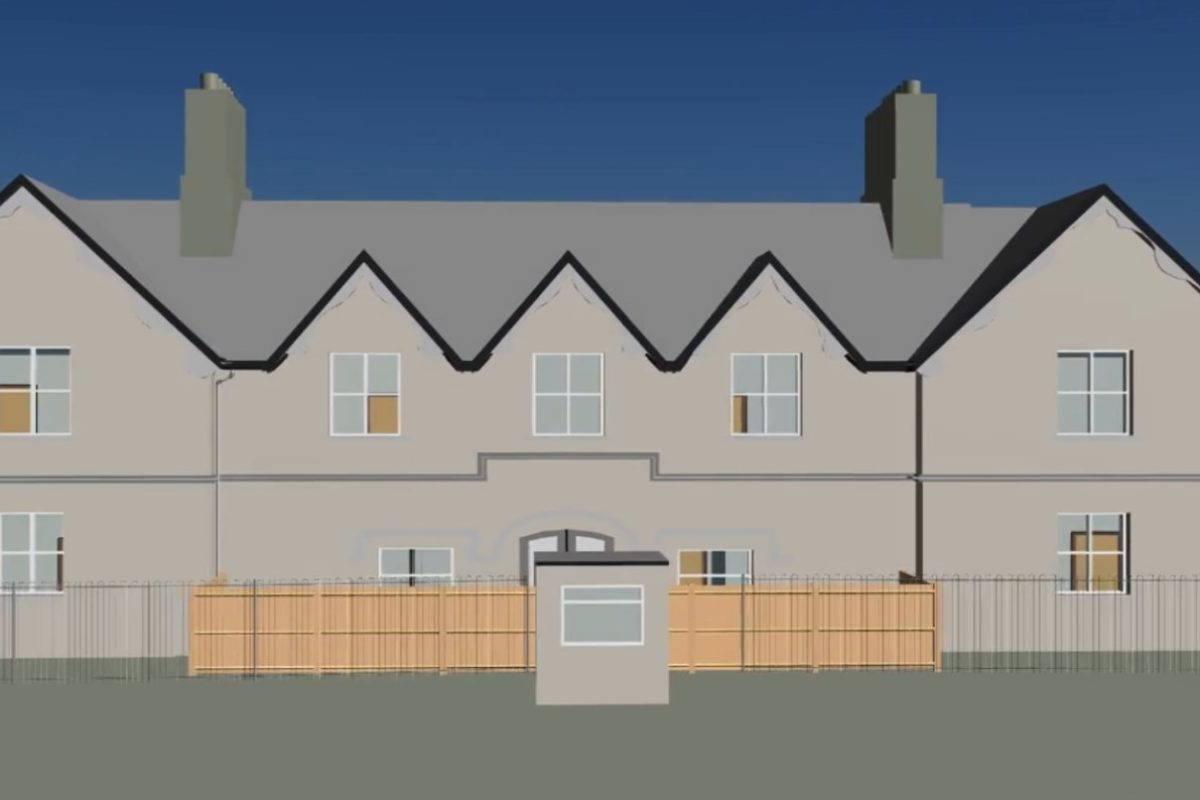

St marys Lodge Model 3
